SC4Dlite - Cascadable
4 Digits Seven Segment LED Serial Display |
|
| |
|
|
|
|
|
|
|
| |

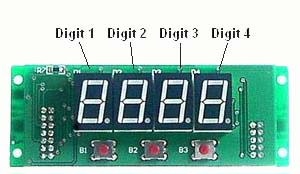

SC4Dlite is a LED display
module with serial interface.
It can be easily controlled with serial command from any host controller
with RS232 or TTL serial port (UART)
Only 1 pin is required to control the 4 digits 7
Seven Segment LED Display

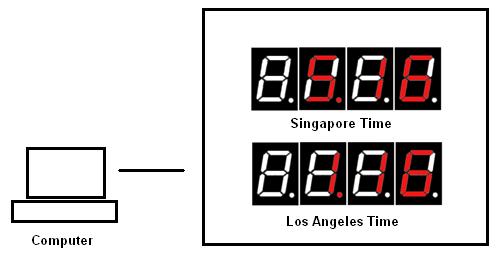

SC4Dlite is cascadable to form a display chain that
is control with single pin from host controller.
Each SC4Dlite can be programmed with unique address so that each
can be individually controlled |
|
 |
|
|
|
|
|
|
|
|
|
|
- 0.52" Red / Green 7 Segment LEDs
- ASCII ( numeric and limited alphabets ) Data
- Integer ( signed and unsigned ) and BCD Data
- Programmable fixed decimal point.
- Up to 254 modules cascadable.

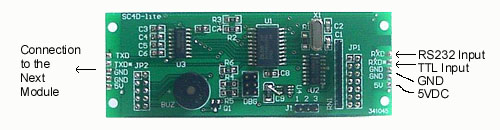

- RS232 or TTL UART Serial Interface
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
- LED Segment controls command [ Device UID ] [
'a' ] [ 4 Bytes Segment Data ]
- Display ASCII characters command [ Device UID
] [ 'b' ] [ 4 Bytes ASCII Characters ]
- Display integers number [ Device UID ] [ 'f'
/ 'g' ] [ 16 bits integer ]
- Display Binary Coded Decimal Number [ Device
UID ] [ 'd ' ] [ BCD 1 ] [ BCD 0 ]
|
|
 |
|
Display ASCII characters
command
[ 0xFF] [ 0x62 ] [ 0x46 ] [ 0x41
] [ 0x49 ] [ 0x4C ]
assuming UID = 0xFF |
|
|
|
|
|
|
|
|
|
 |
|
Display numbers
[0xFF][0x62][0x31][0x32]]0x33][0x34]
or
[0xFF][0x66][0x04][0xD2]
1234 (decimal) = 0x04D2 (Hex) |
|
|
|
|
|
|
|
|
|
Available Accessories:
- Power + RS232 Cable
- Cascade Cable
- Mating Connector
- Aluminum Face Plate
|
The
User's Manual
Test and configuration
software.
Panel
Mounting Kit |
|
|
|
|
|
|
|
|
|
|
